Miscellaneous Notes

Known issue with ASE barostats

As in ASE version 3.18, the ASE implementation of Berendsen barostat misses the ideal gas contribution (see this issue). This causes systematic errors when using PiNN (or any other potential) with ASE for NPT simulations. The barostat can be patched as follows:

from ase.md.nptberendsen import NPTBerendsen
from ase import units

def scale_positions_and_cell_with_p_kin(self):
    """ Do the Berendsen pressure coupling,
    scale the atom position and the simulation cell."""
    taupscl = self.dt / self.taup
    stress = self.atoms.get_stress(voigt=False)
    old_pressure = -stress.trace()/3 * 1e-5 / units.Pascal
    p_kin = ((len(self.atoms)/self.atoms.get_volume()*1e30)*
             self.atoms.get_temperature()*1.38e-23*1e-5)
    old_pressure += p_kin
    scl_pressure = (1.0 - taupscl * self.compressibility / 3.0 *
                    (self.pressure - old_pressure))

    # Alternatively, the scaling factor can be calculated using
    # the below equivalent fomular, which is used in LAMMPS.
    # Both are benchmarked for comparison, the above formular is
    # noted as patch 1 and the version below as patch 2.
    #
    # scl_pressure = (1.0 - taupscl * self.compressibility *
    #                (self.pressure - old_pressure)) ** (1./3.)

    cell = self.atoms.get_cell()
    cell = scl_pressure * cell
    self.atoms.set_cell(cell, scale_atoms=True)

NPTBerendsen.scale_positions_and_cell = scale_positions_and_cell_with_p_kin

The patch is benchmarked against LAMMPS at a known density of Lennard-Jones fluids. As shown below, the patched barostat agrees well with the LAMMPS implementation, while the original ASE barostat overestimates the equilibrium density. Similar issues may exist in other ASE barostats.

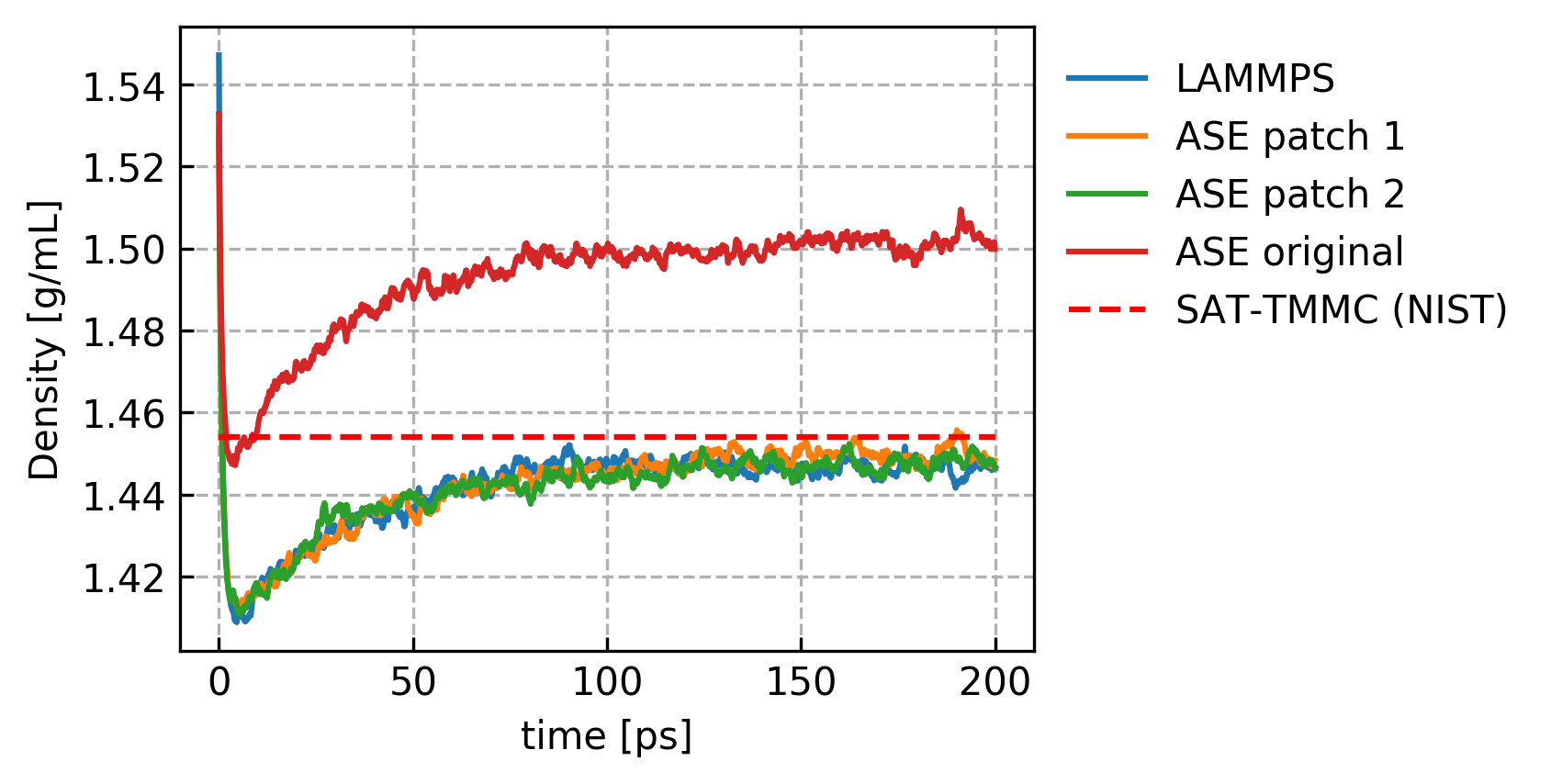

Fig. Equilibrium densities of liquid argon at 78 K and 0.2933 bar using different implementations of the Berendsen barostat. Dashed line is from the NIST website.

Detailed parameters for the benchmark

The Lennard-Jones parameters proposed by Rahman [rahman1964] for Argon is used. The simulations were carried out at 78 K and 0.2933 bar. For each barostat, a cubic simulation box was build as a 10x10x10 simple cubic lattice of argon atoms, with a box size of 35 Å. Cutoff was set to 17 Å and no tail correction was applied. Random velocity was assigned to each atom to achieve an initial temperature of 78 K. Each system was equilibrated using a Berendsen thermostat for 100 ps with fixed simulation box. The Berendsen barostat was then turned on to carry out NPT simulation for 200 ps. The timestep was chosen to be 10 fs, the thermostat and barostat time constants were chosen to be 10 ps and 100 ps respectively, while the compressibility was chosen to be 0.01 bar ^-1. For the sake of cross-check, the corresponding density given at the NIST standard reference simulation website is also shown, which is 1.454 g/mL after conversion from reduced unit.
